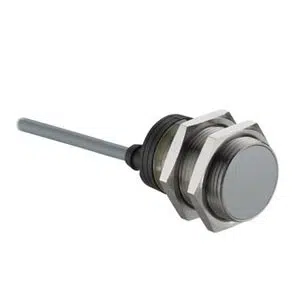

ISS 230MM/44-15E: 50141490 - Leuze 40.6mm Length Cylindrical Switch
Technical Specifications of Leuze 40.6mm Length Cylindrical Switch ISS 230MM/44-15E:
| Spec | Value |
|---|---|
| Sensing Distance | 15 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Embedded |
| Type of Connection | PVC Cable, 2,000mm Length |
Leuze 40.6mm Length Cylindrical Switch ISS 230MM/44-15E, 50141490 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 230 |
| Sensing Distance | 15 mm |
| Supply Voltage | 10 ... 36 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.05 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 1,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000mm Length |
| Number of conductors or Pins | 4 -wire |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 40.6 mm |
| Type of installation | Embedded |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Gray Silver |
| Standard measuring plate | 45 x 45 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 °C Storage: -30 ... 80 °C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 40.6mm Length Cylindrical Switch ISS 230MM/44-15E part no: 50141490 at attractive prices. Technical Specs Summary of ISS 230MM/44-15E, 50141490 includes 230 series, 15 mm Sensing, 10 ... 36 V, DC power supply, 2 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO contact – Antivalent output, 1,000 Hz, 1 Piece(s) Connection, PVC Cable, 2,000mm Length, 4 -wire, Cylindrical, 30 mm x 40.6 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Gray Silver color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 40.6mm Length Cylindrical Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
