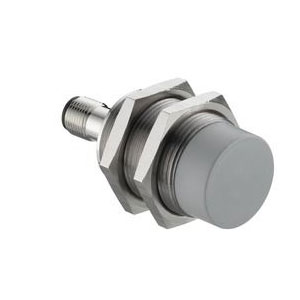

ISS 230MM/44-22N-S12: 50141493 - Leuze 16mA Current Cylindrical Switch
Technical Specifications of Leuze 16mA Current Cylindrical Switch ISS 230MM/44-22N-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 22 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Non-embedded |
| Type of Connection | M12 Connector |
Leuze 16mA Current Cylindrical Switch ISS 230MM/44-22N-S12, 50141493 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 230 |
| Sensing Distance | 22 mm |
| Supply Voltage | 10 ... 36 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.05 mA |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 1,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 30 mm x 67 mm |
| Type of installation | Non-embedded |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Gray Silver |
| Standard measuring plate | 66 x 66 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -40 ... 70 °C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 16mA Current Cylindrical Switch ISS 230MM/44-22N-S12 part no: 50141493 with cost-effective solutions. Essential Technical Specs of ISS 230MM/44-22N-S12, 50141493 are 230 series, 22 mm Sensing, 10 ... 36 V, DC power supply, 2 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO contact – Antivalent output, 1,000 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 30 mm x 67 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Gray Silver color, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze 16mA Current Cylindrical Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
