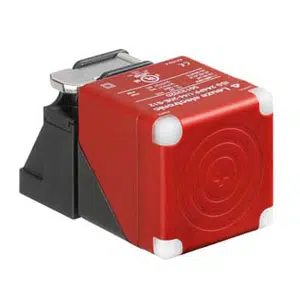

ISS 244PP.1/22-40N-S12: 50136333 - Leuze NPN Non-embedded Cubic Switch
Technical Specifications of Leuze NPN Non-embedded Cubic Switch ISS 244PP.1/22-40N-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 40 mm |
| Switching Output | Transistor, NPN |
| TYpe of Installation | Non-embedded |
| Type of Connection | M8 Connector |
Leuze NPN Non-embedded Cubic Switch ISS 244PP.1/22-40N-S12, 50136333 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 244 |
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, NPN |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 40 mm x 40 mm x 67 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polyamide (PA 66) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 120 x 120 mm², Fe360 |
| Number of LEDs | 4 Piece(s) |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 68, IP 69K |
Ask for the Pricing of Leuze NPN Non-embedded Cubic Switch ISS 244PP.1/22-40N-S12 part no: 50136333 at unbeatable prices. Detailed Specifications of ISS 244PP.1/22-40N-S12, 50136333 feature 244 series, 40 mm Sensing, 10 ... 30 V, DC power supply, 2 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN , NO contact – Antivalent output 1, Transistor, NPN , NO contact – Antivalent output 2, 100 Hz, 1 Piece(s) Connection, M8 Connector, 4 -pin, Cubic, 40 mm x 40 mm x 67 mm dimentions, Non-embedded, Plastic, Polyamide (PA 66), 4 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 68, IP 69K degree of protection.Now's the Time to Secure a Quote for your requirement of Leuze NPN Non-embedded Cubic Switch. We're committed to offering more favorable pricing and more responsive support than other Traders.
