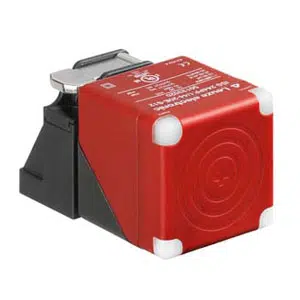

ISS 244PP.1/44-40N-S12: 50133521 - Leuze 40mm Cubic Inductive Switch
Technical Specifications of Leuze 40mm Cubic Inductive Switch ISS 244PP.1/44-40N-S12:
| Spec | Value |
|---|---|
| Sensing Distance | 40 mm |
| Switching Output | Transistor, PNP |
| TYpe of Installation | Non-embedded |
| Type of Connection | M12 Connector |
Leuze 40mm Cubic Inductive Switch ISS 244PP.1/44-40N-S12, 50133521 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 244 |
| Sensing Distance | 40 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact – Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact – Antivalent |
| Switching frequency, max. | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cubic |
| Dimension (Ø x L) | 40 mm x 40 mm x 67 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Sensing face material | Plastic, Polyamide (PA 66) |
| Housing color | Black, Red, RAL 3000 |
| Standard measuring plate | 120 x 120 mm², Fe360 |
| Number of LEDs | 4 Piece(s) |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 68, IP 69K |
Give Us a Call for Leuze 40mm Cubic Inductive Switch ISS 244PP.1/44-40N-S12 part no: 50133521 with budget-friendly prices. Technical Attributes are ISS 244PP.1/44-40N-S12, 50133521 include244 series, 40 mm Sensing, 10 ... 30 V, DC power supply, 2 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO contact – Antivalent output 1, Transistor, PNP , NO contact – Antivalent output 2, 100 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cubic, 40 mm x 40 mm x 67 mm dimentions, Non-embedded, Plastic, Polyamide (PA 66), 4 Piece(s) LEDs, Black, Red, RAL 3000 color, IP 68, IP 69K degree of protection.Navigate Your Needs with a Quote for your requirement of Leuze 40mm Cubic Inductive Switch. We excel in offering more cost-effective and supportive solutions than other Competitors.
