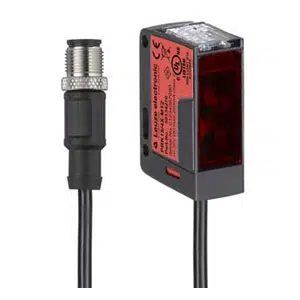

LE15/2X-200-M12: 50138593 - Leuze PUR Cable Through Beam Receiver Sensor

Spec	Value
Operating Principle	Throughbeam principle
Device Type	Receiver
Operating Range	0 ... 25 m
Switching Output	Transistor, NPN

Leuze PUR Cable Through Beam Receiver Sensor LE15/2X-200-M12, 50138593 Technical Specifications:

Specification	Value
Series	15
Operating principle	Throughbeam principle
Device type	Receiver
Operating range	0 ... 25 m
Power Supply	10 ... 30 V, DC, Incl. residual ripple
Open-circuit current	0 ... 20 mA
Number of digital switching outputs	1 Piece(s)
Switching Output	Transistor, NPN
Switching Principle	Light switching
Switching frequency	500 Hz
Response time	1 ms
Readiness delay	300 ms
Connection Function	Signal OUT Voltage supply
Type of Connection	200 mm PUR Cable with M12 Connector
Number of conductors or Pins	4 -pin
Dimension (W x H x L)	15 mm x 42.7 mm x 30 mm
Housing material	Plastic: ABS
Lens cover material	Plastic
Housing color	Black
Type of display	LED
Ambient temperature	operation -40 ... 60 °C storage -40 ... 70 °C
Degree of protection	IP 67
Net weight	22 g

IndMALL Offers Leuze PUR Cable Through Beam Receiver Sensor LE15/2X-200-M12 part no: 50138593 at unbeatable prices. Component Specifications of LE15/2X-200-M12, 50138593 feature 15 series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Light switching , 500 Hz frequency, 200 mm PUR Cable with M12 Connector, 4 -pin, 15 mm x 42.7 mm x 30 mm dimensions, Black housing color, LED display, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze PUR Cable Through Beam Receiver Sensor.
