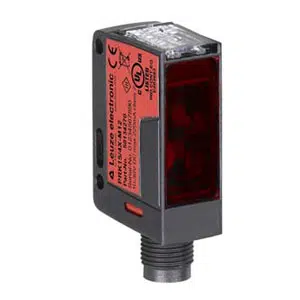

Leuze Signal OUT Connection Through Beam Receiver Sensor LE15/4X-M12, 50138588 Technical Specifications:
Specification
Value
Series
15
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 25 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, PNP
Switching Principle
Light switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
M12 Connector
Number of conductors or Pins
4-pin
Dimension (W x H x L)
15 mm x 42.7 mm x 30 mm
Housing material
Plastic: ABS
Lens cover material
Plastic
Housing color
Black
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
15 g
IndMALL Automation Dealing offers Leuze Signal OUT Connection Through Beam Receiver Sensor LE15/4X-M12 part no: 50138588 at unbeatable prices. The Main Technical Parameters of LE15/4X-M12, 50138588 feature 15 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple
power supply, 0 ... 20 mA current, 1 Piece(s) digital switching output, Transistor, PNP output, Light switching
, 500 Hz frequency, M12 Connector, 4-pin, 15 mm x 42.7 mm x 30 mm dimensions, Black
housing color, LED display, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze Signal OUT Connection Through Beam Receiver Sensor.
