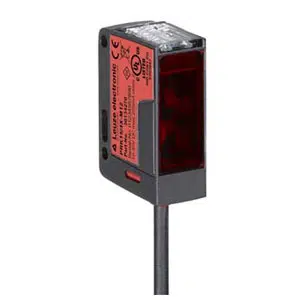

Leuze 500 Hz Switching Frequency Through Beam Receiver Sensor LE15/N, 50144501 Technical Specifications:
Specification
Value
Series
15
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 25 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Dark switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
2000 mm PUR Cable
Number of conductors or Pins
3 -wire
Dimension (W x H x L)
15 mm x 42.7 mm x 30 mm
Housing material
Plastic: ABS
Lens cover material
Plastic
Housing color
Black
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
37 g
Ask for the Pricing of Leuze 500 Hz Switching Frequency Through Beam Receiver Sensor LE15/N part no: 50144501 with exclusive offers. Core System Specifications of LE15/N, 50144501 feature 15 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple
power supply, 0 ... 20 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Dark switching, 500 Hz frequency, 2000 mm PUR Cable, 3 -wire
, 15 mm x 42.7 mm x 30 mm dimensions, Black
housing color, LED display, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 500 Hz Switching Frequency Through Beam Receiver Sensor.
