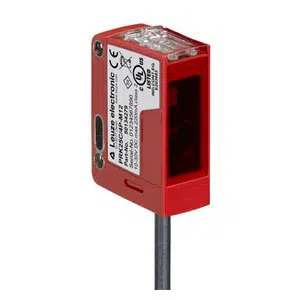

Leuze 2000 mm Cable Type Receiver Sensor LE25C/2N, 50139702 Technical Specifications:
Specification
Value
Series
25C
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 25 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
2 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Light switching/Dark switching
Switching frequency
1,500 Hz
Response time
0.33 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
2,000 mm PUR Cable
Number of conductors or Pins
4 -wire
Dimension (W x H x L)
15 mm x 42.7 mm x 30 mm
Housing material
Plastic: ABS
Lens cover material
Plastic
Housing color
Red
Type of display
-
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67, IP 69K
Net weight
55 g
Ask for the Pricing of Leuze 2000 mm Cable Type Receiver Sensor LE25C/2N part no: 50139702 at unbeatable prices. Detailed Specifications of LE25C/2N, are 25C
series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 2 Piece(s)
digital switching output, Transistor, NPN output, Light switching/Dark switching, 1,500 Hz frequency, 2,000 mm PUR Cable, 4 -wire, 15 mm x 42.7 mm x 30 mm
dimensions, Red housing color, IP 67, IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 2000 mm Cable Type Receiver Sensor.
