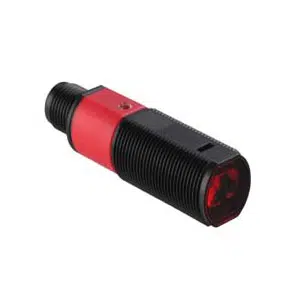

LE318B/2N-M12: 50116845 - Leuze M12 Connector, Transistor NPN Receiver Sensor

Spec	Value
Operating Principle	Throughbeam principle
Device Type	Receiver
Operating Range	0 ... 10 m
Switching Output	Transistor, NPN

Leuze M12 Connector, Transistor NPN Receiver Sensor LE318B/2N-M12, 50116845 Technical Specifications:

Specification	Value
Series	318B
Operating principle	Throughbeam principle
Device type	Receiver
Operating range	0 ... 10 m
Power Supply	10 ... 30 V, DC, Incl. residual ripple
Open-circuit current	0 ... 15 mA
Number of digital switching outputs	2 Piece(s)
Switching Output	Transistor, NPN
Switching Principle	Light switching/Dark switching
Switching frequency	500 Hz
Response time	1 ms
Readiness delay	300 ms
Connection Function	Signal OUT Voltage supply
Type of Connection	M12 Connector
Number of conductors or Pins	4-pin
Dimension (W x H x L)	18 mm x 46 mm
Housing material	Plastic: ABS
Lens cover material	Plastic
Housing color	Black, Red
Type of display	LED
Ambient temperature	operation -40 ... 60 °C storage -40 ... 70 °C
Degree of protection	IP 67
Net weight	20 g

Talk to Our Engineer for Leuze M12 Connector, Transistor NPN Receiver Sensor LE318B/2N-M12 part no: 50116845 with exclusive offers. In-depth Technical Analysis of LE318B/2N-M12, includes 318B series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, NPN output, Light switching/Dark switching, 500 Hz frequency, M12 Connector, 4-pin, 18 mm x 46 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze M12 Connector, Transistor NPN Receiver Sensor.
