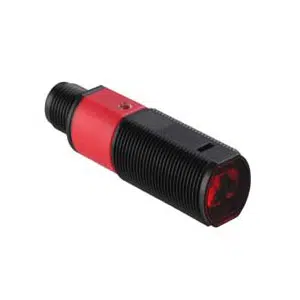

Leuze 500 Hz, 1 ms Response Time Receiver Sensor LE318B/4P-M12, 50116847 Technical Specifications:
Specification
Value
Series
318B
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 10 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 15 mA
Number of digital switching outputs
2 Piece(s)
Switching Output
Transistor, PNP
Switching Principle
Light switching/Dark switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
M12 Connector
Number of conductors or Pins
4-pin
Dimension (W x H x L)
18 mm x 46 mm
Housing material
Plastic: ABS
Lens cover material
Plastic
Housing color
Black, Red
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
20 g
