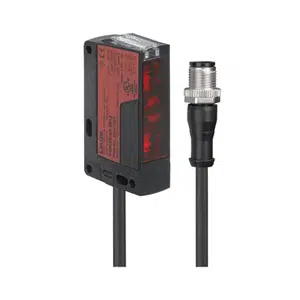

Leuze Voltage Supply Connection Through Beam Receiver Sensor LE36.1/2X-200-M12, 50147136 Technical Specifications:
Specification
Value
Series
36
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0.5 ... 80 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Light switching
Switching frequency
300 Hz
Response time
1.66 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
200 mm PUR Cable with M12 Connector
Number of conductors or Pins
4-wire and 4 -pin
Dimension (W x H x L)
20.5 mm x 76.3 mm x 44 mm
Housing material
Plastic: PC-PBT
Lens cover material
Plastic / PMMA
Housing color
Black
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
65 g
Talk to Our Engineer for Leuze Voltage Supply Connection Through Beam Receiver Sensor LE36.1/2X-200-M12 part no: 50147136 with exclusive offers. In-depth Technical Analysis of LE36.1/2X-200-M12, includes 36 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 1 Piece(s)
digital switching output, Transistor, NPN output, Light switching, 300 Hz frequency, 200 mm PUR Cable with M12 Connector, 4-wire and 4 -pin, 20.5 mm x 76.3 mm x 44 mm
dimensions, Black housing color, LED
display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Voltage Supply Connection Through Beam Receiver Sensor.
