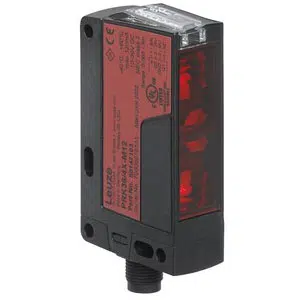

Leuze 1.66 ms Response Receiver Sensor LE36.1/NX-M12, 50147133 Technical Specifications:
Specification
Value
Series
36
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0.5 ... 80 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Dark switching
Switching frequency
300 Hz
Response time
1.66 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
M12 Connector
Number of conductors or Pins
4-pin
Dimension (W x H x L)
20.5 mm x 76.3 mm x 44 mm
Housing material
Plastic: PC-PBT
Lens cover material
Plastic / PMMA
Housing color
Black
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
60 g
Call us for Leuze 1.66 ms Response Receiver Sensor LE36.1/NX-M12 part no: 50147133 at competitive rates. Technical Attributes of LE36.1/NX-M12, are 36 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 1 Piece(s)
digital switching output, Transistor, NPN output, Dark switching, 300 Hz frequency, M12 Connector, 4-pin, 20.5 mm x 76.3 mm x 44 mm
dimensions, Black housing color, LED
display, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 1.66 ms Response Receiver Sensor.
