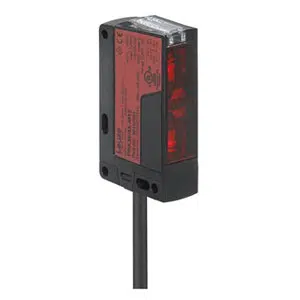

Leuze 80 m Operating range Receiver Sensor LE36.1/P, 50147139 Technical Specifications:
Specification
Value
Series
36
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0.5 ... 80 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, PNP
Switching Principle
Dark switching
Switching frequency
300 Hz
Response time
1.66 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
2,000 mm PUR Cable
Number of conductors or Pins
3-wire
Dimension (W x H x L)
20.5 mm x 76.3 mm x 44 mm
Housing material
Plastic: PC-PBT
Lens cover material
Plastic / PMMA
Housing color
Black
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
100 g
IndMALL Automation Offers Leuze 80 m Operating range Receiver Sensor LE36.1/P part no: 50147139 with exclusive offers. Component Specifications of LE36.1/P, are 36 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 1 Piece(s)
digital switching output, Transistor, PNP output, Dark switching, 300 Hz frequency, 2,000 mm PUR Cable, 3-wire, 20.5 mm x 76.3 mm x 44 mm
dimensions, Black housing color, LED
display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 80 m Operating range Receiver Sensor.
