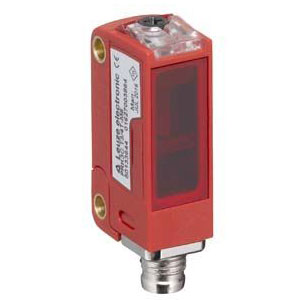

LE3C.B/4W-M8: 50137190 - Leuze Red Housing Color Receiver Sensor
Technical Specifications of Leuze LE3C.B/4W-M8 50137190
| Spec | Value |
|---|---|
| Operating Principle | Throughbeam principle |
| Device Type | Receiver |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching |
Leuze Red Housing Color Receiver Sensor LE3C.B/4W-M8, 50137190 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 3C |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | Light switching |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | UB switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Two M3 threaded sleeves Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 10 g |
Send Your Inquiry for Leuze Red Housing Color Receiver Sensor LE3C.B/4W-M8 part no: 50137190 at unbeatable prices. The Main Technical Parameters of LE3C.B/4W-M8, 50137190 feature 3C series, Throughbeam principle, Receiver device, Warning output Special Version 10 ... 30 V, DC power supply,2 Piece(s) digital switching output, Transistor, PNP, Light switching output 1, Transistor, PNP, UB switching output 2, 1,000 Hz frequency, M8 Connector, 4 -pin, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Two M3 threaded sleeves Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Red Housing Color Receiver Sensor. Experience the difference with our competitive pricing and superior support over other Traders.
