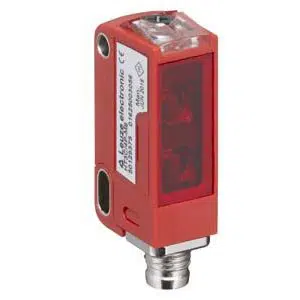

LE3CL1.1/G-M8.3: 50148357 - Leuze M8 Connector 3-pin Receiver Sensor
Technical Specifications of Leuze LE3CL1.1/G-M8.3 50148357
| Spec | Value |
|---|---|
| Operating Principle | Throughbeam principle |
| Device Type | Receiver |
| Switching Output | Transistor, Push-pull |
| Switching Principle | Dark switching (PNP)/light switching (NPN) |
Leuze M8 Connector 3-pin Receiver Sensor LE3CL1.1/G-M8.3, 50148357 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 3C |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 1 Piece(s) |
| O/P 1: Switching Output | Transistor, Push-pull |
| O/P 1: Switching Principle | Dark switching (PNP)/light switching (NPN) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency | 3,000 Hz |
| Response time | 0.16 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 3 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 10 g |
Mail Us for your needs in Leuze M8 Connector 3-pin Receiver Sensor LE3CL1.1/G-M8.3 part no: 50148357 with budget-friendly prices. The Main Technical Parameters of LE3CL1.1/G-M8.3, 50148357 include 3C series, Throughbeam principle, Receiver device, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, Transistor, Push-pull output,Dark switching (PNP)/light switching (NPN), 3,000 Hz frequency, M8 Connector, 3 -pin, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M8 Connector 3-pin Receiver Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
