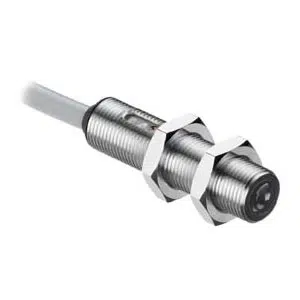

Leuze 0.1 ms Response Time Through Beam Receiver Sensor LE412BL2.1/2, 50140166 Technical Specifications:
Specification
Value
Series
412B
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 50 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 10 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Light switching
Switching frequency
5,000 Hz
Response time
0.1 ms
Readiness delay
20 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
2000 mm PVC Cable
Number of conductors or Pins
3 -wire
Dimension (W x H x L)
12 mm x 51 mm
Housing material
Stainless steel
Lens cover material
Glass
Housing color
Silver
Type of display
LED
Ambient temperature
operation -10 ... 50 °C
Degree of protection
IP 67
Net weight
100 g
Reach Us by Email for Leuze 0.1 ms Response Time Through Beam Receiver Sensor LE412BL2.1/2 part no: 50140166 at Discounted Rates. Key Technical Features of LE412BL2.1/2, are 412B series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 10 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Light switching
, 5,000 Hz frequency, 2000 mm PVC Cable, 3 -wire, 12 mm x 51 mm dimensions, Silver housing color, LED
display, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 0.1 ms Response Time Through Beam Receiver Sensor.
