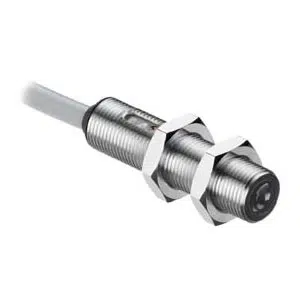

LE412BL2.1/4: 50140168 - Leuze M12 Thread Size Through Beam Receiver Sensor

Spec	Value
Operating Principle	Throughbeam principle
Device Type	Receiver
Operating Range	0 ... 50 m
Switching Output	Transistor, PNP

Leuze M12 Thread Size Through Beam Receiver Sensor LE412BL2.1/4, 50140168 Technical Specifications:

Specification	Value
Series	412B
Operating principle	Throughbeam principle
Device type	Receiver
Operating range	0 ... 50 m
Power Supply	10 ... 30 V, DC, Incl. residual ripple
Open-circuit current	0 ... 10 mA
Number of digital switching outputs	1 Piece(s)
Switching Output	Transistor, PNP
Switching Principle	Light switching
Switching frequency	5,000 Hz
Response time	0.1 ms
Readiness delay	20 ms
Connection Function	Signal OUT Voltage supply
Type of Connection	2000 mm PVC Cable
Number of conductors or Pins	3 -wire
Dimension (W x H x L)	12 mm x 51 mm
Housing material	Stainless steel
Lens cover material	Glass
Housing color	Silver
Type of display	LED
Ambient temperature	operation -10 ... 50 °C
Degree of protection	IP 67
Net weight	100 g

IndMALL Offers Leuze M12 Thread Size Through Beam Receiver Sensor LE412BL2.1/4 part no: 50140168 at economical Choices. Product Tech Specs of LE412BL2.1/4, include 412B series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 10 mA current, 1 Piece(s) digital switching output, Transistor, PNP output, Light switching , 5,000 Hz frequency, 2000 mm PVC Cable, 3 -wire, 12 mm x 51 mm dimensions, Silver housing color, LED display, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze M12 Thread Size Through Beam Receiver Sensor.
