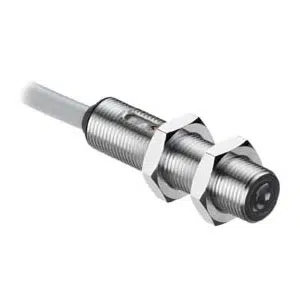

LE412BL2.1/N: 50140167 - Leuze Transistor NPN Dark switching Receiver Sensor

Spec	Value
Operating Principle	Throughbeam principle
Device Type	Receiver
Operating Range	0 ... 50 m
Switching Output	Transistor, NPN

Leuze Transistor NPN Dark switching Receiver Sensor LE412BL2.1/N, 50140167 Technical Specifications:

Specification	Value
Series	412B
Operating principle	Throughbeam principle
Device type	Receiver
Operating range	0 ... 50 m
Power Supply	10 ... 30 V, DC, Incl. residual ripple
Open-circuit current	0 ... 10 mA
Number of digital switching outputs	1 Piece(s)
Switching Output	Transistor, NPN
Switching Principle	Dark switching
Switching frequency	5,000 Hz
Response time	0.1 ms
Readiness delay	20 ms
Connection Function	Signal OUT Voltage supply
Type of Connection	2000 mm PVC Cable
Number of conductors or Pins	3 -wire
Dimension (W x H x L)	12 mm x 51 mm
Housing material	Stainless steel
Lens cover material	Glass
Housing color	Silver
Type of display	LED
Ambient temperature	operation -10 ... 50 °C
Degree of protection	IP 67
Net weight	100 g

Send Us an Email for Leuze Transistor NPN Dark switching Receiver Sensor LE412BL2.1/N part no: 50140167 with the special pricing. Engineering Specifications of LE412BL2.1/N, detail 412B series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 10 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Dark switching, 5,000 Hz frequency, 2000 mm PVC Cable, 3 -wire, 12 mm x 51 mm dimensions, Silver housing color, LED display, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze Transistor NPN Dark switching Receiver Sensor.
