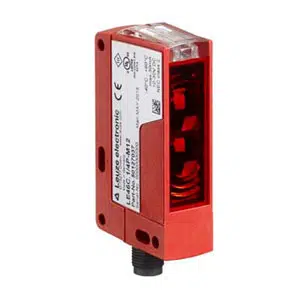

Leuze 120 m 4-pin Through Beam Receiver Sensor LE46C.1/4P-M12, 50127037 Technical Specifications:
Specification
Value
Series
46C
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0.5 ... 120 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
2 Piece(s)
Switching Output
Transistor, PNP
Switching Principle
Light switching/Dark switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
M12 Connector
Number of conductors or Pins
4-pin
Dimension (W x H x L)
20.5 mm x 76.3 mm x 44 mm
Housing material
Plastic: PC-PBT
Lens cover material
Plastic / PMMA
Housing color
Red
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67, IP 69K
Net weight
60 g
