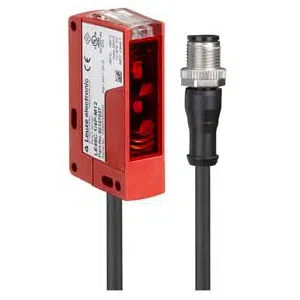

LE46C/4P-200-M12: 50127035 - Leuze 300 ms Readiness Delay Receiver Sensor

Spec	Value
Operating Principle	Throughbeam principle
Device Type	Receiver
Operating Range	0.5 ... 120 m
Switching Output	Transistor, PNP

Leuze 300 ms Readiness Delay Receiver Sensor LE46C/4P-200-M12, 50127035 Technical Specifications:

Specification	Value
Series	46C
Operating principle	Throughbeam principle
Device type	Receiver
Operating range	0.5 ... 120 m
Power Supply	10 ... 30 V, DC, Incl. residual ripple
Open-circuit current	0 ... 20 mA
Number of digital switching outputs	2 Piece(s)
Switching Output	Transistor, PNP
Switching Principle	Light switching/Dark switching
Switching frequency	500 Hz
Response time	1 ms
Readiness delay	300 ms
Connection Function	Signal OUT Voltage supply
Type of Connection	200 mm PUR Cable with M12 Connector
Number of conductors or Pins	4 -pin
Dimension (W x H x L)	20.5 mm x 76.3 mm x 44 mm
Housing material	Plastic: PC-PBT
Lens cover material	Plastic / PMMA
Housing color	Red
Type of display	LED
Ambient temperature	operation -40 ... 60 °C storage -40 ... 70 °C
Degree of protection	IP 67, IP 69K
Net weight	65 g

Call us for Leuze 300 ms Readiness Delay Receiver Sensor LE46C/4P-200-M12 part no: 50127035 at competitive rates. Technical Attributes of LE46C/4P-200-M12, are 46C series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 500 Hz frequency, 200 mm PUR Cable with M12 Connector, 4 -pin, 20.5 mm x 76.3 mm x 44 mm dimensions, Red housing color, LED display, IP 67, IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 300 ms Readiness Delay Receiver Sensor.
