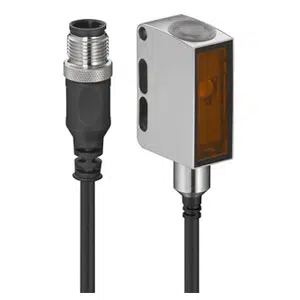

Leuze 64 Operating Range Receiver Sensor LE55CI.H2O/4P-200-M12, 50148184 Technical Specifications:
Specification
Value
Series
55C
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 64 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 15 mA
Number of digital switching outputs
2 Piece(s)
Switching Output
Transistor, PNP
Switching Principle
Light switching/Dark switching
Switching frequency
350 Hz
Response time
1.43 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
200 mm PVC Cable with M12 Connector
Number of conductors or Pins
4 -pin
Dimension (W x H x L)
14 mm x 35.4 mm x 25 mm
Housing material
Stainless steel
Lens cover material
Plastic with scratch-resistant Indium protective coating
Housing color
Silver
Type of display
LED
Ambient temperature
operation -40 ... 70 °C
storage -40 ... 70 °C
Degree of protection
IP 67, IP 68K, IP 69K
Net weight
59 g
IndMALL Offers Leuze 64 Operating Range Receiver Sensor LE55CI.H2O/4P-200-M12 part no: 50148184 at economical Choices. Product Tech Specs of LE55CI.H2O/4P-200-M12, include 55C series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 350 Hz frequency, 200 mm PVC Cable with M12 Connector, 4 -pin, 14 mm x 35.4 mm x 25 mm dimensions, Silver housing color, LED
display, IP 67, IP 68K, IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 64 Operating Range Receiver Sensor.
