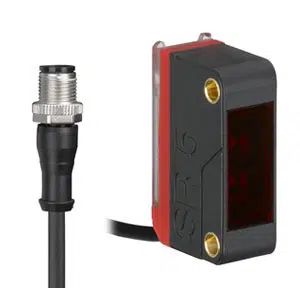

Leuze 900 Hz Switching Frequency Through Beam Receiver Sensor LE5B/NX-200-M12, 50149739 Technical Specifications:
Specification
Value
Series
5B
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 10 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 20 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, NPN
Switching Principle
Dark switching(light switching by reversing polarity of UB)
Switching frequency
900 Hz
Response time
0.56 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
200mm PVC Cable with M12 Connector
Number of conductors or Pins
3-wire and 4-pin
Dimension (W x H x L)
11 mm x 32.4 mm x 20 mm
Housing material
Plastic: PC-ABS
Lens cover material
Plastic
Housing color
Black, Red
Type of display
LED
Ambient temperature
Operation: -40 ... 60 °C
Storage: -40 ... 70 °C
Degree of protection
IP 67
Net weight
40 g
Talk to Our Engineer for Leuze 900 Hz Switching Frequency Through Beam Receiver Sensor 50149739 part no: Leuze 900 Hz Switching Frequency Through Beam Receiver Sensor with exclusive offers. Core System Specifications of LE5B/NX-200-M12, 50149739 feature 5B series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 1 Piece(s) digital switching output, Transistor, NPN output, Dark switching(light switching by reversing polarity of UB), 900 Hz
frequency, 200mm PVC Cable with M12 Connector, 3-wire and 4-pin, 11 mm x 32.4 mm x 20 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 900 Hz Switching Frequency Through Beam Receiver Sensor.
