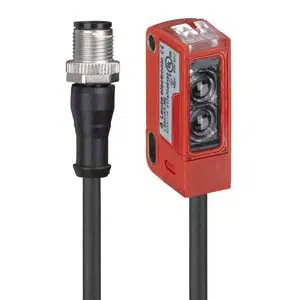

LS3C/8X-200-M8: 50137177 - Leuze M8 Connector Transmitter Sensor
Technical Specifications of Leuze LS3C/8X-200-M8 50137177:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Operating principle | Throughbeam principle |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Type of Connection | 200 mm PUR Cable with M8 Connector |
Leuze M8 Connector Transmitter Sensor LS3C/8X-200-M8, 50137177 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 3C |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Operating range limit | 0.05 ... 10 m; Typical operating range |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 632 nm |
| Light spot size [at sensor distance] | 4 mm [100 mm] |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | 200 mm PUR Cable with M8 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 20 g |
Call us for Leuze M8 Connector Transmitter Sensor LS3C/8X-200-M8 part no: 50137177 at the lowest pricing. In-depth Technical Analysis of LS3C/8X-200-M8, 50137177 feature 3C series, Transmitter device, activation input special version, 0.05 ... 8.5 m; Guaranteed operating range operating range, 0.05 ... 10 m; Typical operating range operating range limit, Divergent beam path, LED, Red light source, 632 nm wavelength, 4 mm [100 mm]light spot size, Round light spot geometry, 10 ... 30 V, DC power supply, 200 mm PUR Cable with M8 Connector , 4-pin , 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze M8 Connector Transmitter Sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
