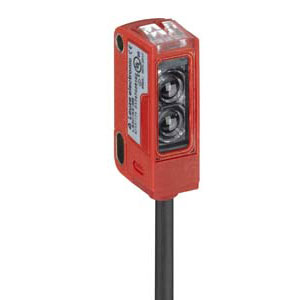

LS3C/8X-5000: 50137176 - Leuze PUR 5M Cable Transmitter Sensor
Technical Specifications of Leuze LS3C/8X-5000 50137176:
Spec | Value |
---|---|
Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
Operating principle | Throughbeam principle |
Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
Type of Connection | PUR Cable, 5m Length |
Leuze PUR 5M Cable Transmitter Sensor LS3C/8X-5000, 50137176 Technical Specifications:
Specification | Value |
---|---|
Series | 3C |
Operating principle | Throughbeam principle |
Device type | Transmitter |
Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
Operating range limit | 0.05 ... 10 m; Typical operating range |
Beam path | Divergent |
Light source | LED, Red |
Wavelength | 632 nm |
Light spot size [at sensor distance] | 4 mm [100 mm] |
Type of light spot geometry | Round |
Power Supply | 10 ... 30 V, DC |
Open-circuit current | 0 ... 20 mA |
Readiness delay | 300 ms |
Connection Function | Signal IN Voltage supply |
Type of Connection | PUR Cable, 5m Length |
Number of conductors or Pins | 4-wire |
Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
Housing material | Plastic: PC-ABS |
Lens cover material | Plastic / PMMA |
Housing color | Red |
Type of fastening | Through-hole mounting Via optional mounting device |
Type of display | LED |
Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
Degree of protection | IP 67, IP 69K |
Net weight | 100 g |
Mail Us for Leuze PUR 5M Cable Transmitter Sensor LS3C/8X-5000 part no: 50137176 at unbeatable prices. Detailed Specifications of LS3C/8X-5000, 50137176 feature 3C series, Transmitter device, activation input special version, 0.05 ... 8.5 m; Guaranteed operating range operating range, 0.05 ... 10 m; Typical operating range operating range limit, Divergent beam path, LED, Red light source, 632 nm wavelength, 4 mm [100 mm]light spot size, Round light spot geometry, 10 ... 30 V, DC power supply, PUR Cable, 5m Length , 4-wire , 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze PUR 5M Cable Transmitter Sensor. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
