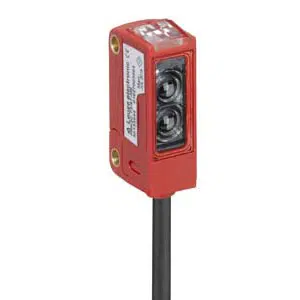

LS3C.B/XX: 50138109 - Leuze PUR 2M Cable Transmitter Sensor
Technical Specifications of Leuze LS3C.B/XX 50138109:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Operating principle | Throughbeam principle |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Type of Connection | PUR Cable, 2m Length |
Leuze PUR 2M Cable Transmitter Sensor LS3C.B/XX, 50138109 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 3C |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Operating range limit | 0.05 ... 10 m; Typical operating range |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 632 nm |
| Light spot size [at sensor distance] | 4 mm [100 mm] |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | PUR Cable, 2m Length |
| Number of conductors or Pins | 4 -wire |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 50 g |
Talk to Our Engineer for Leuze PUR 2M Cable Transmitter Sensor LS3C.B/XX part no: 50138109 with exclusive offers. Core System Specifications of LS3C.B/XX, 50138109 are 3C series, Transmitter device, 0.05 ... 8.5 m; Guaranteed operating range operating range, 0.05 ... 10 m; Typical operating range operating range limit, Divergent beam path, LED, Red light source, 632 nm wavelength, 4 mm [100 mm]light spot size, Round light spot geometry, 10 ... 30 V, DC power supply, PUR Cable, 2m Length , 4 -wire , 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze PUR 2M Cable Transmitter Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
