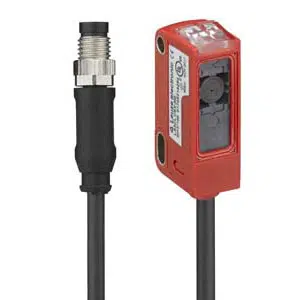

LS3CL1/8X-200-M12: 50137200 - Leuze 18.3 mm Length Throughbeam Sensor
Technical Specifications of Leuze LS3CL1/8X-200-M12 50137200:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Operating principle | Throughbeam principle |
| Operating range | 0 ... 5 m; Guaranteed operating range |
| Type of Connection | 200 mm PUR Cable with M12 Connector |
Leuze 18.3 mm Length Throughbeam Sensor LS3CL1/8X-200-M12, 50137200 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 3C |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 5 m; Guaranteed operating range |
| Operating range limit | 0 ... 10 m; Typical operating range |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Light spot size [at sensor distance] | 2.5 mm x 2 mm [1,000 mm] |
| Type of light spot geometry | elliptic |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | 200 mm PUR Cable with M12 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 55 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 20 g |
Please speak to our Technical Engineer for Leuze 18.3 mm Length Throughbeam Sensor LS3CL1/8X-200-M12 part no: 50137200 at attractive prices. Technical Specs Summary of LS3CL1/8X-200-M12, 50137200 includes 3C series, Transmitter device, activation input special version, 0 ... 5 m; Guaranteed operating range operating range, 0 ... 10 m; Typical operating range operating range limit, Collimated beam path, Laser, Red light source, 650 nm wavelength, 2.5 mm x 2 mm [1,000 mm]light spot size, elliptic light spot geometry, 10 ... 30 V, DC power supply, 200 mm PUR Cable with M12 Connector , 4-pin , 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 18.3 mm Length Throughbeam Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
