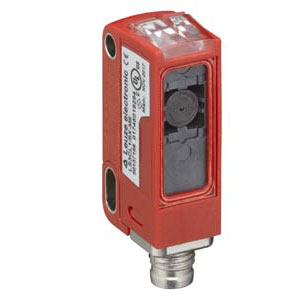

LS3CL1/XX-M8: 50137194 - Leuze Laser Class Photoelectric Sensor
Technical Specifications of Leuze LS3CL1/XX-M8 50137194:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Operating principle | Throughbeam principle |
| Operating range | 0 ... 5 m; Guaranteed operating range |
| Type of Connection | M8 Connector |
Leuze Laser Class Photoelectric Sensor LS3CL1/XX-M8, 50137194 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 3C |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 5 m; Guaranteed operating range |
| Operating range limit | 0 ... 10 m; Typical operating range |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Light spot size [at sensor distance] | 2.5 mm x 2 mm [1,000 mm] |
| Type of light spot geometry | elliptic |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | M8 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 55 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 10 g |
Mail Us for Leuze Laser Class Photoelectric Sensor LS3CL1/XX-M8 part no: 50137194 at the lowest pricing. Technical Specs Summary of LS3CL1/XX-M8, 50137194 are 3C series, Transmitter device, 0 ... 5 m; Guaranteed operating range operating range, 0 ... 10 m; Typical operating range operating range limit, Collimated beam path, Laser, Red light source, 650 nm wavelength, 2.5 mm x 2 mm [1,000 mm]light spot size, elliptic light spot geometry, 10 ... 30 V, DC power supply, M8 Connector, 4-pin, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze Laser Class Photoelectric Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
