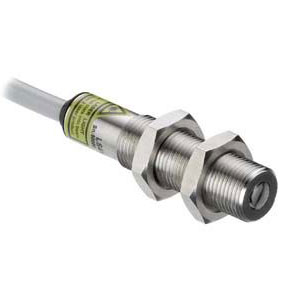

LS412BL2/D: 50140165 -Leuze 51mm Length Throughbeam Transmitter Sensor
Technical Specifications of Leuze LS412BL2/D 50140165:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 12 mm x 51 mm |
| Operating principle | Throughbeam principle |
| Operating range | 0 ... 50 m; Guaranteed operating range |
| Type of Connection | PVC Cable, 2m Length |
Leuze 51mm Length Throughbeam Transmitter Sensor LS412BL2/D, 50140165 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 412B |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 50 m; Guaranteed operating range |
| Operating range limit | 0 ... 50 m; Typical operating range |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 660 nm |
| Light spot size [at sensor distance] | 2 mm [1,000 mm] |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 36 V, DC |
| Open-circuit current | 0 ... 10 mA |
| Readiness delay | - |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3-wire |
| Dimension (W x H x L) | 12 mm x 51 mm |
| Housing material | Stainless steel: V2A |
| Lens cover material | Glass |
| Housing color | Silver |
| Type of fastening | - |
| Type of display | - |
| Ambient temperature | Operation: -10 ... 50 °C |
| Degree of protection | IP 67 |
| Net weight | 100 g |
Reach Us by Email for Leuze 51mm Length Throughbeam Transmitter Sensor LS412BL2/D part no: 50140165at the best rates. Technical Configuration of LS412BL2/D, 50140165 are 412B series, Transmitter device, 0 ... 50 m; Guaranteed operating range operating range, 0 ... 50 m; Typical operating range operating range limit, Collimated beam path, Laser, Red light source, 660 nm wavelength, 2 mm [1,000 mm] light spot size, Round light spot geometry, 10 ... 36 V, DC power supply, PVC Cable, 2m Length, 3-wire, 12 mm x 51 mm dimensions, Silver housing color,IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 51mm Length Throughbeam Transmitter Sensor. We're committed to offering more favorable pricing and more responsive support than other Distributors.
