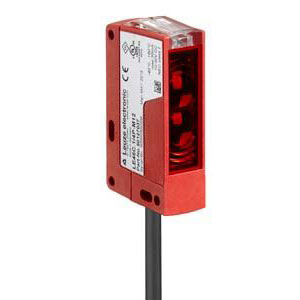

LS46C: 50127043 - Leuze Divergent PUR 2M Cable Throughbeam Sensor
Technical Specifications of Leuze Divergent PUR 2M Cable Throughbeam Sensor LS46C 50127043:
| Spec | Value |
|---|---|
| Operating Range | 0... 150 m |
| Dimension | 20.5 mm x 76.3 mm x 44 mm |
| Type of Connection | PUR Cable, 2m Length |
| Connection Function | Voltage supply |
Leuze Divergent PUR 2M Cable Throughbeam Sensor LS46C, 50127043 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 46C |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 150 m |
| Light source | LED, Red |
| Wavelength | 630 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | PUR Cable, 2m Length |
| Number of conductors or Pins | 4-wire |
| Dimension | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic: PC-PBT |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 100 g |
IndMALL Offers Leuze Divergent PUR 2M Cable Throughbeam Sensor LS46C part no: 50127043 at economical Choices. Product Tech Specs of LS46C, 50127043 include 46C series, Throughbeam, Transmitter device, 0... 150 m operating range, Divergent beam path, LED, Red light source, 630 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 20 mA current, PUR Cable, 2m Length, 4-wire, 20.5 mm x 76.3 mm x 44 mm dimensions, Red housing color, LED display, IP 67, IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Divergent PUR 2M Cable Throughbeam Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
