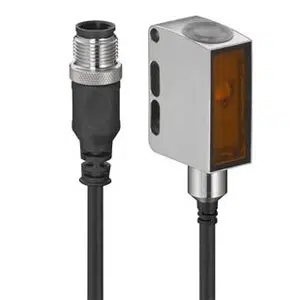

LS55C/8X-200-M12: 50148178 - Leuze Divergent Beam Path Photo Sensor
Technical Specifications of Leuze LS55C/8X-200-M12 50148178:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 mm |
| Operating principle | Throughbeam principle |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Type of Connection | PVC 200 mm cable with M12 connector |
Leuze Divergent Beam Path Photo Sensor LS55C/8X-200-M12, 50148178 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 55C |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0.05 ... 8.5 m; Guaranteed operating range |
| Operating range limit | 0.05 ... 10 m; Typical operating range |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Light spot size [at sensor distance] | 4 mm [100 mm] |
| Type of light spot geometry | Round |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 15 mA |
| Readiness delay | 300 ms |
| Connection Function | Signal IN Voltage supply |
| Type of Connection | PVC 200 mm cable with M12 connector |
| Number of conductors or Pins | 4-wire and 4-pin |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 25 mm |
| Housing material | Stainless steel: AISI 316L, DIN X2CrNiMo17132, W.No1.4404 |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 70 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67, IP 68, IP 69K |
| Net weight | 59 g |
Ask for the Pricing of Leuze Divergent Beam Path Photo Sensor LS55C/8X-200-M12 part no: 50148178 at unbeatable prices. Detailed Specifications of LS55C/8X-200-M12, 50148178 feature 55C series, Transmitter device, Wash-Down design Activation input special, 0.05 ... 8.5 m; Guaranteed operating range operating range, 0.05 ... 10 m; Typical operating range operating range limit, Divergent beam path, LED, Red light source, 645 nm wavelength, 4 mm [100 mm] light spot size, Round light spot geometry, 10 ... 30 V, DC power supply, PVC 200 mm cable with M12 connector, 4-wire and 4-pin, 14 mm x 35.4 mm x 25 mm dimensions, Silver housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 68, IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Divergent Beam Path Photo Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
