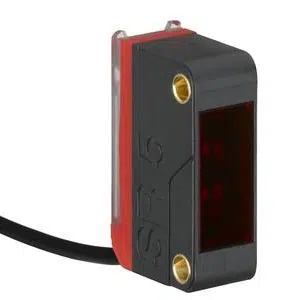

LS5B: 50145237 - Leuze Signal IN Voltage supply Transmitter Sensor
Technical Specifications of Leuze Signal IN Voltage supply Transmitter Sensor LS5B 50145237:
| Spec | Value |
|---|---|
| Operating Range | 0 ... 15 m |
| Dimension | 11 mm x 32.4 mm x 20 mm |
| Type of Connection | PVC Cable, 2m Length |
| Connection Function | Voltage supply |
Leuze Signal IN Voltage supply Transmitter Sensor LS5B, 50145237 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 5B |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 15 m |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Dimension | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic |
| Housing color | Black, Red |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 60 °C Storage: -40 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 44 g |
Call us for Leuze Signal IN Voltage supply Transmitter Sensor LS5B part no: 50145237 at the lowest pricing. In-depth Technical Analysis of LS5B, 50145237 feature 5B series, Throughbeam, Transmitter device, 0 ... 15 m operating range, LED, Red light source, 645 nm wavelength, 10 ... 30 V, DC power supply, 0 ... 20 mA current, PVC Cable, 2m Length, 3 -wire, 11 mm x 32.4 mm x 20 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze Signal IN Voltage supply Transmitter Sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
