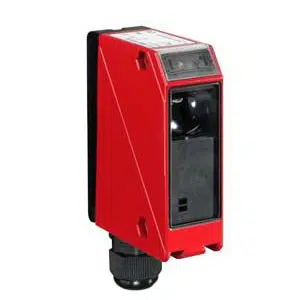

LSS 96K-1070-23: 50025255 - Leuze Terminal 2-pin Throughbeam Sensor
Technical Specifications of Leuze LSS 96K-1070-23 50025255:
| Spec | Value |
|---|---|
| Power Supply | 10 ... 30 V, DC |
| Device Type | Transmitter |
| Operating Range | 0... 65 m |
| Type of Connection | Terminal |
Leuze Terminal 2-pin Throughbeam Sensor LSS 96K-1070-23, 50025255 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 96 |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0... 65 m |
| Light source | LED, Infrared |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 50 mA |
| Type of Connection | Terminal |
| Number of conductors or Pins | 2-pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic: PC |
| Lens cover material | Plastic |
| Note | Housing part used contains perfluorobutanesulfonic acid (PFBS) |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 55 °C |
| Degree of protection | IP 67 |
| Net weight | 150 g |
Please speak to our Technical Engineer for Leuze Terminal 2-pin Throughbeam Sensor LSS 96K-1070-23 part no: 50025255 at attractive prices. Technical Specs Summary of LSS 96K-1070-23, 50025255 includes 96 series, Throughbeam, Transmitter device, 0... 65 m operating range, LED, Infrared light source, 10 ... 30 V, DC power supply, 0 ... 50 mA current, Terminal, 2-pin, 30 mm x 90 mm x 70 mm dimensions, LED display, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze Terminal 2-pin Throughbeam Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
