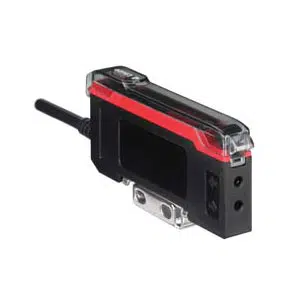

Leuze LV463.XV7/L4 | 50133970
Technical Specifications of Leuze LV463.XV7/L4 50133970:
Spec | Value |
---|---|
Design | Cubic |
Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
Light Source | LED, Red |
Wavelength | 660 nm |
Leuze 2000 mm Cable Length Fiber Optic Sensor LV463.XV7/L4, 50133970 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Dimension (W x H x L) | 10 mm x 31.5 mm x 72 mm |
Suitable for | Glass fiber optics Plastic fiber optics |
Special version | Short response time Time function |
Light Source | LED, Red |
Wavelength | 660 nm |
Transmitted-signal shape | Pulsed |
Supply voltage UB | 10 ... 24 V, DC |
Number of digital switching outputs | 2 Piece(s) |
Switching current, max | 100 mA |
Switching voltage | high: ≥(UB-2.5V) low: ≤ 2.5 V |
Switching output 1 | Transistor, Push-pull |
Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
Switching output 2 | Transistor, PNP |
Switching principle | Dark switching |
Switching frequency | 50,000 Hz |
Response time | 0.05 ms |
Number of connections | 1 Piece(s) |
Con:1 Function | Signal IN Signal OUT Voltage supply |
Type of connection | Cable |
Cable length | 2,000 mm |
Cable color | Black |
Number of conductors | 4 -wire |
Housing material | Plastic |
Plastic housing | ABS |
Housing color | Black Red |
Type of fastening | Via optional mounting device |
Type of display | LED |
Operational controls | Rocker pressure switch Slide switch |
Ambient temperature, operation | -10 ... 55 °C |
Ambient temperature, storage | -20 ... 85 °C |
Degree of protection | IP 50 NEMA 1 |
IndMALL Automation Offers Leuze 2000 mm Cable Length Fiber Optic Sensor LV463.XV7/L4 50133970 with exclusive offers. Component Specifications of LV463.XV7/L4 are Cubic Design, 10 mm x 31.5 mm x 72 mm Dimensions, LED, Red Light Source, 660 nm Wavelength, 10 ... 24 V, DC Supply Voltage, Transistor, Push-pull Output Cable, 2,000 mm, 50,000 Hz Switching Principle, Plastic Housing color, -10 ... 55 °C degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 2000 mm Cable Length Fiber Optic Sensor.
