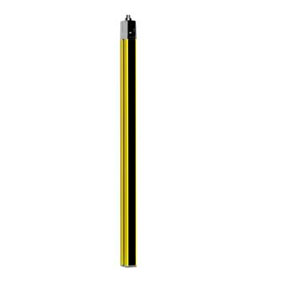

MLC300T20-150: 68090201 - Leuze 20mm Safety Light Curtain Transmitter
Technical Specifications of Leuze 20mm Safety Light Curtain Transmitter MLC300T20-150 68090201:
Spec | Value |
---|---|
Device Type | Transmitter |
Operating Range | 0 ... 15 m |
Light Source | LED, Infrared |
Type of Connection | M12 Connector 5-pin |
Leuze 20mm Safety Light Curtain Transmitter MLC300T20-150, 68090201 Technical Specifications:
Specification | Value |
---|---|
Series | MLC 300 |
Device type | Transmitter |
Contains | 2x BT-NC sliding block |
Application | Hand protection |
Resolution | 20 mm |
Protective field height | 150 mm |
Operating range | 0 ... 15 m |
Synchronization | Optical between transmitter and receiver |
Light source | LED, Infrared |
Wavelength | 940 nm |
Mean power of transmitter diode | 50 µW |
Transmitted-signal shape | Pulsed |
Protective circuit | Overvoltage protection, Short circuit protected |
Supply voltage UB | 24 V, DC, -20 ... 20 % |
Current consumption, max. | 50 mA |
Number of connections | 1 Piece(s) |
Function | Machine interface |
Type of connection | M12 Connector 5-pin |
Type | Male |
Dimension (W x H x L) | 29 mm x 216 mm x 35.4 mm |
Housing material | Metal: Aluminum |
Lens cover material | Plastic / PMMA |
Material of end caps | Diecast zinc |
Housing color | Yellow, RAL 1021 |
Type of fastening | Groove mounting, Mounting brackets, Mounting on Device Column, Swivel mount |
Type of display | LED |
Number of LEDs | 2 Piece(s) |
Degree of protection | IP 65 |
Protection class | III |
Ambient temperature, operation | 0 ... 50 °C |
Ambient temperature, storage | -30 ... 70 °C |
Relative humidity (non-condensing) | 0 ... 95 % |
Net weight | 300 g |
Reach Us by Email for Leuze 20mm Safety Light Curtain Transmitter MLC300T20-150 part no: 68090201 at Discounted Rates. Key Technical Features of MLC300T20-150, 68090201 are Hand protection, Transmitter device, 20 mm resolution, 150 mm protective height, 0 ... 15 m operating range, LED, Infrared Light source, 940 nm wavelength, 24 V, DC, -20 ... 20 % supply voltage, 50 mA current consumption, M12 Connector 5-pin, Male, 29 mm x 216 mm x 35.4 mm dimension, LED display. Navigate Your Needs with a Quote for your requirement of Leuze 20mm Safety Light Curtain Transmitter. Our pricing and support are unrivaled, especially when compared to other Competitors.
