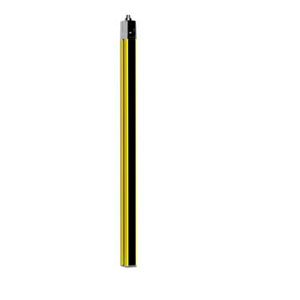

MLC310R20-1500: 68091215 - Leuze 20mm Hand Protection Light Curtain
Technical Specifications of Leuze 20mm Hand Protection Light Curtain Receiver MLC310R20-1500 68091215:
| Spec | Value |
|---|---|
| Device type | Receiver |
| Application | Hand protection |
| Type of connection | M12 Connector 5-pin |
| Dimension (W x H x L) | 29 mm x 1,566 mm x 35.4 mm |
Leuze 20mm Hand Protection Light Curtain Receiver MLC310R20-1500, 68091215 Technical Specifications:
| Specification | Value |
|---|---|
| Series | MLC 300 |
| Device type | Receiver |
| Contains | 2x BT-NC sliding block |
| Application | Hand protection |
| Functions | Automatic start/restart, Transmission channel changeover |
| Resolution | 20 mm |
| Protective field height | 1,500 mm |
| Synchronization | Optical between transmitter and receiver |
| Protective circuit | Overvoltage protection, Short circuit protected |
| Supply voltage UB | 24 V, DC, -20 ... 20 % |
| Current consumption, max. | 150 mA |
| Number of safety-related switching outputs (OSSDs) | 2 Piece(s) |
| Safety related switching output Type | Safety-related switching output OSSD |
| Switching voltage high, min. | 18 V |
| Switching voltage low, max. | 2.5 V |
| Switching voltage, typ. | 22.5 V |
| Voltage type | DC |
| Current load, max. | 380 mA |
| Load inductivity | 2,000 µH |
| Load capacity | 0.03 µF |
| Residual current, max. | 0.2 mA |
| Voltage drop | 1.5 V |
| O/P 1: Switching Principle | 24 V switching |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | 24 V switching |
| O/P 2: Switching Output | Transistor, PNP |
| Response time | 26 ms |
| Restart delay time | 100 ms |
| Number of connections | 1 Piece(s) |
| Function | Machine interface |
| Type of connection | M12 Connector 5-pin |
| Type | Male |
| Dimension (W x H x L) | 29 mm x 1,566 mm x 35.4 mm |
| Housing material | Metal: Aluminum |
| Lens cover material | Plastic / PMMA |
| Material of end caps | Diecast zinc |
| Housing color | Yellow, RAL 1021 |
| Type of fastening | Groove mounting, Mounting brackets, Mounting on Device Column, Swivel mount |
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
| Degree of protection | IP 65 |
| Protection class | III |
| Ambient temperature, operation | -15 ... 55 °C |
| Ambient temperature, storage | -30 ... 70 °C |
| Relative humidity (non-condensing) | 0 ... 95 % |
| Net weight | 1,650 g |
Please speak to our Technical Engineer for Leuze 20mm Hand Protection Light Curtain Receiver MLC310R20-1500 part no: 68091215 at attractive prices. Technical Specs Summary of MLC310R20-1500, 68091215 includes Hand protection, Receiver device, 20 mm resolution, 1,500 mm protective height, 24 V, DC, -20 ... 20 % supply voltage, 150 mA current consumption, 2 Piece(s) outputs, 1.24 V switching, Transistor, PNP output, 2.24 V switching, Transistor, PNP output, M12 Connector 5-pin, Male, 29 mm x 1,566 mm x 35.4 mm dimension, LED display. Match Your Needs with a Quote for your requirement of Leuze 20mm Hand Protection Light Curtain Receiver. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
