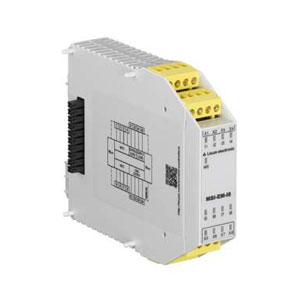

Leuze MSI-EM-IO84-01 | 50132990
Technical Specifications of Leuze MSI-EM-IO84-01 50132990:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 96.5 mm x 120.8 mm |
| Number of safe I/Os | 8 IN, 4 OUT |
| Supply voltage UB | 24 V, DC, -30 ... 25 % |
| Power consumption, max. | 1.1 W |
Leuze 8 IN 4 OUT I/Os Safety Controller MSI-EM-IO84-01, 50132990 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 96.5 mm x 120.8 mm |
| Application | Monitoring of safety functions |
| Number of safe I/Os | 8 IN, 4 OUT |
| Supply voltage UB | 24 V, DC, -30 ... 25 % |
| Power consumption, max. | 1.1 W |
| Number of outputs | 4 Piece(s) |
| Type of digital output | Transistor |
| Number of inputs | 8 Piece(s) |
| Interface Type | Internal bus (SBUS+) |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Screw terminal |
| No. of pins | 16-pin |
| Con:2 Function | - |
| Type of connection | - |
| Housing color | Gray |
| Type of fastening | Snap-on mounting |
| Ambient temperature, operation | -25 ... 65 °C |
| Ambient temperature, storage | -25 ... 70 °C |
| Degree of protection | IP 20 (terminals) IP 40 (housing) |
IndMALL Offers Leuze 8 IN 4 OUT I/Os Safety Controller MSI-EM-IO84-01 50132990 with budget friendly prices. The Main Technical Parameters of MSI-EM-IO84-01 are 22.5 mm x 96.5 mm x 120.8 mm Dimensions, Number of Safe I/Os, 24 V, DC, -30 ... 25 % Supply Voltage, 1.1 W
Power Consumption, Internal bus (SBUS+) Interface Type, Terminal Connection Screw terminal, 16-pin, Snap-on mounting, Gray Housing color, IP 20 (terminals)
IP 40 (housing) degree of protection. Don't Miss Out on a Quote for your requirement of Leuze 8 IN 4 OUT I/Os Safety Controller.
