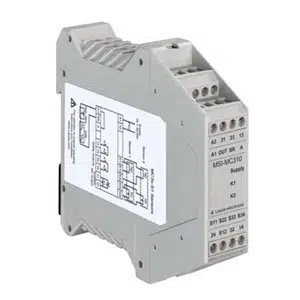

Leuze MSI-MC310 | 549941
Technical Specifications of Leuze MSI-MC310 549941:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 99 mm x 113.6 mm |
| Restart | Automatic Manual |
| Type of Terminal | Screw terminal |
| No. of pins | 16 -pin |
Leuze One or Two Channel Actuation Safety Relay MSI-MC310, 549941 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 99 mm x 113.6 mm |
| Functions | For stop category 0 Start/restart interlock (RES) Static contactor monitoring (EDM) |
| Restart | Automatic Manual |
| Type of Terminal | Screw terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Connection to device Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | 20 ms |
| Evaluation of the inputs | - |
| Input current | 150 mA |
| Supply Voltage UB | 24 V, AC/DC, -10 ... 10 % |
| Power consumption, max | 4.6 W, For 24 V, plus output load |
| Switching Output 1 | Relay, NC |
| Type of fastening | Snap-on mounting |
| Housing Material | Plastic |
| Housing Color | Gray |
| Ambient Temperature, Operation | 0 ... 55 °C |
| Ambient Temperature, Storage | -25 ... 70 °C |
| Degree of protection | IP 20 (terminals),Installation in switch cabinet or housing with degree of protection of at least IP 54 IP 40 (housing) |
Call us for Leuze One or Two Channel Actuation Safety Relay MSI-MC310 549941 at competitive rates. Technical Attributes of MSI-MC310 are IP 20 (terminals),Installation in switch cabinet or housing with degree of protection of at least IP 54, IP 40 (housing), -25 ... 70 °C, 0 ... 55 °C, Gray
, Snap-on mounting, Relay, NC, 4.6 W, For 24 V, plus output load & 20 ms. And It Delivers 24 V, AC/DC, -10 ... 10 %, 150 mA & -. Unlock Exclusive Pricing with a Quote for your requirement of Leuze One or Two Channel Actuation Safety Relay. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
