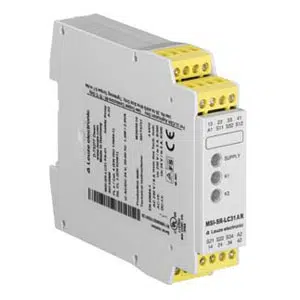

Leuze MSI-SR-LC21-03 | 50133009
Technical Specifications of Leuze MSI-SR-LC21-03 50133009:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
Leuze Contactor Monitoring Safety Relay MSI-SR-LC21-03, 50133009 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm |
| Functions | Monitoring of E-Stop circuits Monitoring of optoelectronic protective devices Monitoring of position switches Monitoring of proximity switches Monitoring of solenoid switches |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | 500 ms |
| Evaluation of the inputs | Two-channel |
| Input current | 40 mA |
| Supply Voltage UB | 24 V, AC/DC, -15 ... 10 % |
| Power consumption, max | 2 W, For 24 V, plus output load |
| Switching Output 1 | - |
| Type of fastening | Snap-on mounting |
| Housing Material | - |
| Housing Color | Gray |
| Ambient Temperature, Operation | -25 ... 55 °C |
| Ambient Temperature, Storage | - |
| Degree of protection | - |
Ask for the Pricing of Leuze Contactor Monitoring Safety Relay MSI-SR-LC21-03 50133009 at unbeatable prices. Detailed Specifications of MSI-SR-LC21-03 feature 22.5 mm x 106.5 mm x 114 mm Dimensions, Manual function, Spring-cage terminal, 16 -pin, Signal IN/ Signal OUT Voltage supply. Moreover, it features Two-channel, 24 V, AC/DC, -15 ... 10 %, 2 W, For 24 V, plus output load, Snap-on mounting. Now's the Time to Secure a Quote for your requirement of Leuze Contactor Monitoring Safety Relay. We're committed to offering more favorable pricing and more responsive support than other Traders.
