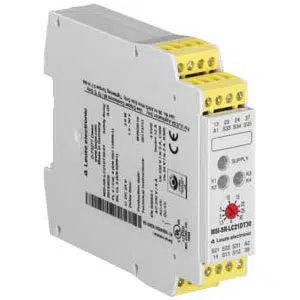

Leuze MSI-SR-LC21DT30-03 | 50133021
Technical Specifications of Leuze MSI-SR-LC21DT30-03 50133021:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
Leuze NO contact off-delay Safety Relay MSI-SR-LC21DT30-03, 50133021 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm |
| Functions | Cross circuit monitoring One- or two-channel operation Start/restart interlock (RES) Time-delayed shutdown (STOPP1) |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Signal IN Signal OUT Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | 700 ms |
| Evaluation of the inputs | Two-channel |
| Input current | 25 mA |
| Supply Voltage UB | 24 V, AC/DC, -15 ... 10 % |
| Power consumption, max | 2.6 W, For 24 V, plus output load |
| Switching Output 1 | - |
| Type of fastening | Snap-on mounting |
| Housing Material | - |
| Housing Color | Gray |
| Ambient Temperature, Operation | -25 ... 55 °C |
| Ambient Temperature, Storage | -- |
| Degree of protection | - |
Call us for Leuze NO contact off-delay Safety Relay, MSI-SR-LC21DT30-03, 50133021 at competitive rates. Technical Attributes of MSI-SR-LC21DT30-03 are -, --, -25 ... 55 °C, Gray
, Snap-on mounting, -, 2.6 W, For 24 V, plus output load & 700 ms. And It Delivers 24 V, AC/DC, -15 ... 10 %, 25 mA & Two-channel. Unlock Exclusive Pricing with a Quote for your requirement of Leuze NO contact off-delay Safety Relay. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
