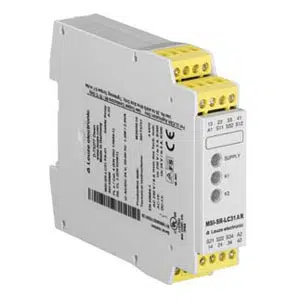

Leuze MSI-SR-LC31AR-01 | 50133004
Technical Specifications of Leuze MSI-SR-LC31AR-01 50133004:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 96.5 mm x 114 mm |
| Restart | Automatic |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
Leuze E Stop Circuit Safety Relay MSI-SR-LC31AR-01, 50133004 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 96.5 mm x 114 mm |
| Functions | Monitoring of E-Stop circuits Monitoring of optoelectronic protective devices Monitoring of position switches Monitoring of proximity switches Monitoring of solenoid switches |
| Restart | Automatic |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | - |
| Number of connections | 1 Piece(s) |
| Response Time | 350 ms |
| Evaluation of the inputs | Two-channel |
| Input current | 25 mA |
| Supply Voltage UB | 24 V, AC/DC, -15 ... 10 % |
| Power consumption, max | 1.6 W, For 24 V, plus output load |
| Switching Output 1 | - |
| Type of fastening | Snap-on mounting |
| Housing Material | - |
| Housing Color | Gray |
| Ambient Temperature, Operation | -25 ... 65 °C |
| Ambient Temperature, Storage | - |
| Degree of protection | - |
Get A Quote for Leuze E Stop Circuit Safety Relay MSI-SR-LC31AR-01 50133004 at the best price. Here are the brief Technical Specifications of MSI-SR-LC31AR-01 are 22.5 mm x 96.5 mm x 114 mm Dimensions, Automatic, Spring Cage Terminal. And it offers Two-channel Evaluation inputs, 25 mA Power Consumption, 24 V, AC/DC, -15 ... 10 % Supply Voltage. It's Time to get a Quote for your requirement of Leuze E Stop Circuit Safety Relay. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
