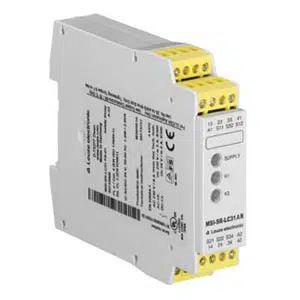

Leuze MSI-SR-LC31MR-03 | 50133007
Technical Specifications of Leuze MSI-SR-LC31MR-03 50133007:
Spec | Value |
---|---|
Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm |
Restart | Manual |
Type of Terminal | Spring-cage terminal |
No. of pins | 16 -pin |
Leuze Solenoid switches Safety Relay MSI-SR-LC31MR-03, 50133007 Technical Specifications:
Specification | Value |
---|---|
Dimension (W x H x L) | 22.5 mm x 106.5 mm x 114 mm |
Functions | Monitoring of E-Stop circuits Monitoring of optoelectronic protective devices Monitoring of position switches Monitoring of proximity switches Monitoring of solenoid switches |
Restart | Manual |
Type of Terminal | Spring-cage terminal |
No. of pins | 16 -pin |
Connection 1 Function | Signal IN Signal OUT Voltage supply |
Number of connections | 1 Piece(s) |
Response Time | 100 ms |
Evaluation of the inputs | Two-channel |
Input current | 25 mA |
Supply Voltage UB | 24 V, AC/DC, -15 ... 10 % |
Power consumption, max | 1.6 W, For 24 V, plus output load |
Switching Output 1 | - |
Type of fastening | Snap-on mounting |
Housing Material | - |
Housing Color | Gray |
Ambient Temperature, Operation | -25 ... 65 °C |
Ambient Temperature, Storage | - |
Degree of protection | - |
Call us for Leuze Solenoid Switches Safety Relay MSI-SR-LC31MR-03 50133007 at competitive rates. Technical Attributes of MSI-SR-LC31MR-03 are 22.5 mm x 106.5 mm x 114 mm Dimensions, Manual Functions, Spring-cage terminal, 16 -pin. And It Delivers Two-channel, 25 mA input current, 24 V, AC/DC, -15 ... 10 %, 1.6 W, For 24 V, plus output load. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Solenoid Switches Safety Relay. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
