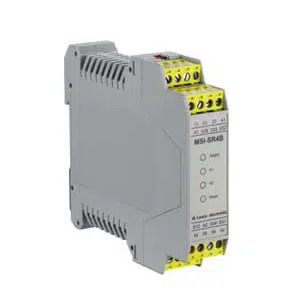

Leuze MSI-SR4B-02 | 547951
Technical Specifications of Leuze MSI-SR4B-02 547951:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 111 mm x 114.1 mm |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
Leuze Relay NO Safety Relay MSI-SR4B-02, 547951 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 111 mm x 114.1 mm |
| Functions | Contactor monitoring (EDM) Cross circuit monitoring Start/restart interlock (RES) |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Connection to device |
| Number of connections | 1 Piece(s) |
| Response Time | 10 ms |
| Evaluation of the inputs | - |
| Input current | 100mA |
| Supply Voltage UB | 24 V, AC/DC, -20 ... 20 % |
| Power consumption, max | 3 W, For 24 V, plus output load |
| Switching Output 1 | Relay, NO |
| Type of fastening | Snap-on mounting |
| Housing Material | Plastic |
| Housing Color | Gray |
| Ambient Temperature, Operation | 0 ... 55 °C |
| Ambient Temperature, Storage | -25 ... 70 °C |
| Degree of protection | IP 20 (terminals) IP 40 (housing) |
IndMALL Dealing in Automatic Leuze Relay NO Safety Relay MSI-SR4B-02 547951 at the best rates. Operational Specifications for MSI-SR4B-02 are 22.5 mm x 111 mm x 114.1 mm, 24 V, AC/DC, -20 ... 20 % Supply Voltage, 3 W Power Consumption, Relay, NO, & Plastic. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Relay NO Safety Relay. Experience the advantage of our pricing and support against other Traders.
