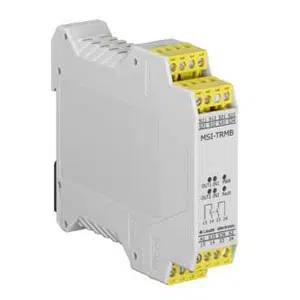

Leuze MSI-TRMB-01 | 547931
Technical Specifications of Leuze MSI-TRMB-01 547931:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 99 mm x 114.1 mm |
| Restart | Automatic Manual |
| Type of Terminal | Screw terminal |
| No. of pins | 16 -pin |
Leuze Error Signal O/P Safety Relay MSI-TRMB-01, 547931 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 99 mm x 114.1 mm |
| Functions | Start/restart interlock (RES) |
| Restart | Automatic Manual |
| Type of Terminal | Screw terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Connection to receiver Connection to transmitter Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | 130 ms |
| Evaluation of the inputs | - |
| Input current | - |
| Supply Voltage UB | 24 V, DC, -20 ... 20 % |
| Power consumption, max | 3 W, For 24 V, plus output load |
| Switching Output 1 | Transistor, PNP |
| Type of fastening | Snap-on mounting |
| Housing Material | Plastic |
| Housing Color | Gray |
| Ambient Temperature, Operation | -25 ... 55 °C |
| Ambient Temperature, Storage | -25 ... 75 °C |
| Degree of protection | IP 20 (housing) IP 20 (terminals) |
Obtain a Quote for Leuze Error Signal O/P Safety Relay MSI-TRMB-01 547931 at economical prices. Specifications Overview for MSI-TRMB-01 reveals 22.5 mm x 99 mm x 114.1 mm Dimensions, Start/restart interlock (RES) functions, Screw terminal, 16 -pin.. It also includes Transistor, PNP output, Snap-on mounting, Plastic, Gray . Take the First Step with a Quote for your requirement of Leuze Error Signal O/P Safety Relay. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
