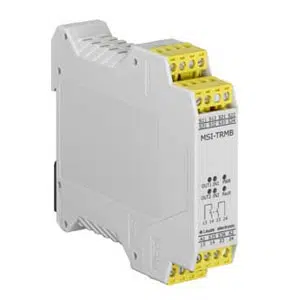

Leuze MSI-TRMB-02 | 547932
Technical Specifications of Leuze MSI-TRMB-02 547932:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 111 mm x 114.1 mm |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
Leuze AC/DC Voltage Safety Relay MSI-TRMB-02, 547932 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 111 mm x 114.1 mm |
| Functions | Start/restart interlock (RES) |
| Restart | Automatic Manual |
| Type of Terminal | Spring-cage terminal |
| No. of pins | 16 -pin |
| Connection 1 Function | Connection to receiver Connection to transmitter Voltage supply |
| Number of connections | 1 Piece(s) |
| Response Time | 130 ms |
| Evaluation of the inputs | - |
| Input current | - |
| Supply Voltage UB | 24 V, DC, -20 ... 20 % |
| Power consumption, max | 3 W, For 24 V, plus output load |
| Switching Output 1 | Transistor, PNP |
| Type of fastening | Snap-on mounting |
| Housing Material | Plastic |
| Housing Color | Gray |
| Ambient Temperature, Operation | -25 ... 55 °C |
| Ambient Temperature, Storage | -25 ... 75 °C |
| Degree of protection | IP 20 (housing) IP 20 (terminals) |
Talk to Our Engineer for Leuze AC/DC Voltage Safety Relay MSI-TRMB-02 547932 with exclusive offers. Core System Specifications of MSI-TRMB-02 are 22.5 mm x 111 mm x 114.1 mm dimensions, Start/restart interlock (RES), Automatic and Manual, Spring-cage terminal, 16 -pin. And It Comes With 3 W, For 24 V, plus output load, Transistor, PNP output, Snap-on mounting, Plastic. Don't Miss Out on a Quote for your requirement of Leuze AC/DC Voltage Safety Relay. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
