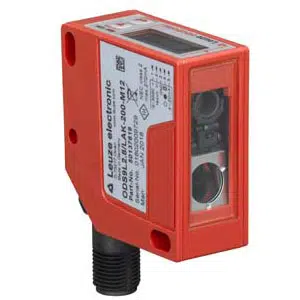

ODS9L2.8/LA6-200-M12 | 50137815 - Leuze Plastic Housing Distance Sensor
Technical Specifications of Leuze Plastic Housing Distance Sensor ODS9L2.8/LA6-200-M12:
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 21 mm x 50 mm x 50 mm |
| Switching Output 1 | Transistor, Push-pull |
| Measurement range | Transistor, Push-pull |
Leuze Plastic Housing Distance Sensor ODS9L2.8/LA6-200-M12, 50137815 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 21 mm x 50 mm x 50 mm |
| Switching Output 1 | Transistor, Push-pull |
| Measurement range | Transistor, Push-pull |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog output type | Configurable, factory setting: current |
| Connection type | Connector, Turning, 90° |
| Thread size | M12 |
| No. of pins | 5 -pin |
| Housing material | Plastic |
| Lens cover material | Glass |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze Plastic Housing Distance Sensor, ODS9L2.8/LA6-200-M12, 50137815 at unbeatable prices. The Main Technical Parameters of Leuze Plastic Housing Distance Sensor includes Glass, Plastic, 5 -pin, M12, Connector, Turning, 90°, Configurable, factory setting: current, 18 ... 30 V, DC & Laser, Red. Additionally, it provides Transistor, Push-pull, Transistor, Push-pull & 21 mm x 50 mm x 50 mm. Take the First Step with a Quote for your requirement of Leuze Plastic Housing Distance Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
