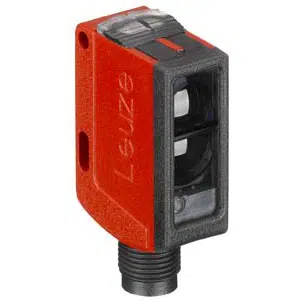

Leuze ODT25B/L6.32-2500,200-S12 | 50149096
Technical Specifications of Leuze ODT25B/L6.32-2500,200-S12 50149096:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Distance diffuse sensor with background suppression |
| Sensing Distance | 0.05 ... 2.5 m |
| Light Source | LED, Infrared |
Leuze 0.05 to 2.5 m operating range diffuse sensor ODT25B/L6.32-2500,200-S12 - 50149096 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Distance diffuse sensor with background suppression |
| Sensing Distance | 0.05 ... 2.5 m |
| Beam Path | Focused |
| Light Source | LED, Infrared |
| Wavelength | 850 nm |
| Supply Voltage UB | 18 ... 30 V, DC, Incl. residual ripple |
| Switching Output | Transistor, Push-pull |
| Switching principle | O-Link / light switching (PNP)/dark switching (NPN) |
| Switching frequency | 2 ... 30 Hz, depending on diffuse reflectance |
| Response time | 70 ms, depending on diffuse reflectance |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
Call us for ODT25B/L6.32-2500,200-S12 part no.50149096 with budget-friendly prices. Technical Attributes of ODT25B/L6.32-2500,200-S12 are Cubic, Design Distance diffuse sensor with background suppression, 15 mm x 38.9 mm x 28.7 mm Dimension, LED, Infrared Light source, Transistor, Push-pull Switching Outputs 1, O-Link / light switching (PNP)/dark switching (NPN) Switching principle, 18 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.05 ... 2.5 m Sensing Distance, Cable with connector Type of connection, Plastic Housing material, IP 66/IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.05 to 2.5 m operating range diffuse sensor. Rest assured, our pricing and support outshine other Suppliers.
