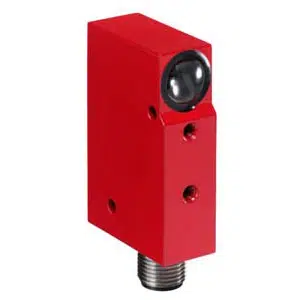

Leuze PRK 18/24 DL.46 | 50032798
Technical Specifications of Leuze PRK 18/24 DL.46 50032798:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 3 m |
| Light Source | LED, Red |
Leuze -25 to 55 °C operation temperature retro-reflective sensor PRK 18/24 DL.46 - 50032798 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes |
| Special version | Autocollimation Tracking function Warning output |
| Sensing Distance | 0 ... 3 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Light switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 50 mm x 33 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Step switch |
| Ambient temperature, operation | -25 ... 55 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Obtain a Quote for Leuze -25 to 55 °C operation temperature retro-reflective sensor PRK 18/24 DL.46 part no: 50032798 at economical prices. Specifications Overview for PRK 18/24 DL.46, 50032798 reveals Cubic, Design Reflection principle, 15 mm x 50 mm x 33 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 3 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze -25 to 55 °C operation temperature retro-reflective sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
