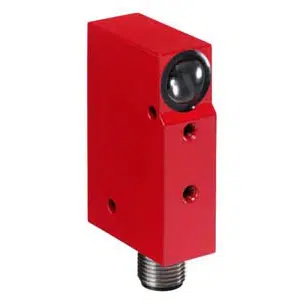

Leuze PRK 18/44 L.43 | 50115193
Technical Specifications of Leuze PRK 18/44 L.43 50115193:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0 ... 3 m |
| Light Source | LED, Red |
Leuze Step switch Operational controls retro-reflective sensor PRK 18/44 L.43 - 50115193 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of highly transparent bottles Detection of highly transparent films and glass panes |
| Special version | Autocollimation Teach input Tracking function |
| Sensing Distance | 0 ... 3 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switchin |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 50 mm x 33 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Step switch |
| Ambient temperature, operation | -25 ... 55 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Please speak to our Technical Engineer for Leuze Step switch Operational controls retro-reflective sensor PRK 18/44 L.43 part no: 50115193 at attractive prices. Technical Specs Summary of PRK 18/44 L.43, 50115193 includes Cubic, Design Reflection principle, 15 mm x 50 mm x 33 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switchin Switching principle, 10 ... 30 V, DC Supply voltage UB, 0 ... 3 m Sensing Distance, 4 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze Step switch Operational controls retro-reflective sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
