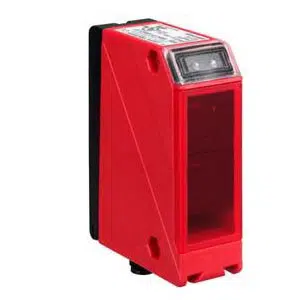

Leuze PRK 96K/R-1420-25 | 50025167
Technical Specifications of Leuze PRK 96K/R-1420-25 50025167:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.3 ... 8 m |
| Light Source | LED, Red |
Leuze 270 degree potentiometer, IP 67 protection retro-reflective sensor PRK 96K/R-1420-25 - 50025167 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | - |
| Sensing Distance | 0.3 ... 8 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 20 ... 230 V, AC/DC |
| Switching Output 1 | Relay, NC contact/NO contact |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 20 Hz |
| Response time | - |
| Function | - |
| Type of connection | Terminal |
| Type of terminal | - |
| No. of pins | 5 -pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | - |
| Type of display | LED |
| Operational controls | 270° potentiometer |
| Ambient temperature, operation | -30 ... 55 °C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 270 degree potentiometer, IP 67 protection retro-reflective sensor PRK 96K/R-1420-25 part no: 50025167 at attractive prices. Technical Specs Summary of PRK 96K/R-1420-25, 50025167 includes Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Relay, NC contact/NO contact Switching Outputs 1, Light switching Switching principle, 20 ... 230 V, AC/DC Supply voltage UB, 0.3 ... 8 m Sensing Distance, Terminal Type of connection, Plastic Housing material, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 270 degree potentiometer, IP 67 protection retro-reflective sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
