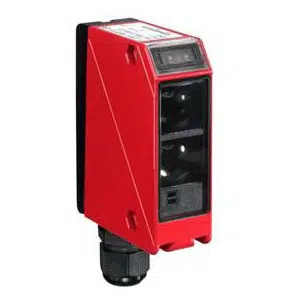

Leuze PRK 96M/P-1400-22 | 50025178
Technical Specifications of Leuze PRK 96M/P-1400-22 50025178:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.3 ... 8 m |
| Light Source | LED, Red |
Leuze Heating, Time function, Warning output retro-reflective sensor PRK 96M/P-1400-22 - 50025178 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Special version | Heating Time function Warning output |
| Sensing Distance | 0.3 ... 8 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | - |
| Function | - |
| Type of connection | Terminal |
| Type of terminal | - |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | - |
| Type of display | LED |
| Operational controls | 270° potentiometer Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 55 °C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze Heating, Time function, Warning output retro-reflective sensor PRK 96M/P-1400-22 part no: 50025178 with budget-friendly prices. The Main Technical Parameters of PRK 96M/P-1400-22, 50025178 include Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.3 ... 8 m Sensing Distance, Terminal Type of connection, Metal Housing material, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze Heating, Time function, Warning output retro-reflective sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
